High-Temperature Tape for PCB Protection

In the fast-paced world of electronics manufacturing, printed circuit boards (PCBs) are the backbone of innovation—but they’re also fragile. From soldering processes to harsh operating environments, heat is a constant threat. Enter high-temperature tape, an unsung hero that ensures PCBs survive thermal stress without compromising performance. Here’s how this specialized material safeguards your circuits and boosts production yields.

Why PCBs Need Thermal Protection

PCBs face extreme temperatures during:

Reflow Soldering: Peaking at 260°C (500°F) to melt solder paste.
Wave Soldering: Exposure to 250°C (482°F) molten solder baths.
Automotive/Industrial Use: Sustained heat from engines, motors, or power systems.

Without protection, heat can:

Warp substrates, misaligning components.
Degrade adhesives, causing delamination.
Damage sensitive parts like ICs, capacitors, or flex circuits.

How High-Temperature Tape Works

Engineered to withstand temperatures up to 300°C (572°F), these tapes combine heat-resistant materials with precision adhesives. Key features include:

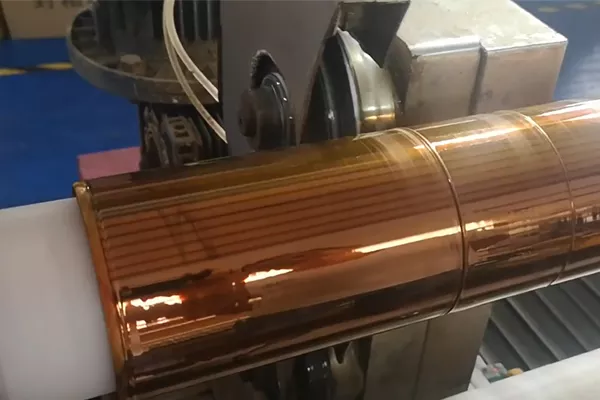

Polyimide (Kapton®) Base:
- Withstands 260°C+ continuously.
- Resists chemicals, abrasion, and UV exposure.
Silicone or Acrylic Adhesives:
- Silicone: Extreme heat tolerance (up to 300°C), ideal for soldering.
- Acrylic: Stronger initial tack for automated assembly lines.
Dielectric Strength:
- Prevents electrical shorts during soldering or coating processes.

Top Applications in PCB Manufacturing

1. Solder Mask Protection

Problem: Solder splatter contaminates gold contacts or connectors.
Solution: Apply tape to shield exposed areas during wave soldering.
Result: Cleaner boards, reduced rework.

2. Selective Conformal Coating

Problem: Coatings seep into areas requiring future rework (e.g., test points).
Solution: Mask off zones with high-temp tape before spraying.
Result: Precision coating, lower scrap rates.

3. Flex Circuit Handling

Problem: Thin flexible PCBs tear during hot-bar soldering.
Solution: Reinforce edges with polyimide tape.
Result: Zero warping, 100% alignment accuracy.

4. Thermal Management

Problem: Heat from power components degrades nearby traces.
Solution: Use thermally conductive tape to divert heat to heatsinks.
Result: 15–20% longer component lifespan.

Best Practices for Application

Surface Prep: Clean PCBs with IPA to remove oils or dust.
Pre-Cut Shapes: Use laser-cut tapes for odd geometries (e.g., QFN pads).
Reputation: Deliver reliability in critical sectors like medical or aerospace.
Sustainability: Reduce waste from rework and scrapped boards.

Final Takeaway
High-temperature tape isn’t just a consumable—it’s insurance for your PCBs. In an industry where margins are slim and failures costly, the right tape ensures your boards endure the heat… literally.
